 Crowded needle roller little end

View previous topic View next topic Go down
AuthorMessage
1bantamcloser2divorce

avatar

Number of posts : 36
Localisation : Vancouver Island, CANADA
Registration date : 2009-10-06

PostSubject: Crowded needle roller little end   Sun Oct 13, 2013 8:36 am

I am trying to fit A Suzuki piston to a D1. bludgeon (spell checker!Very Happy†) pin. I believe the term for making this work is "crowded roller".

Can anyone talk me through (or have pictures) of how to do this?

Advice much appreciated.

Thanks,

Andy
Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

PostSubject: Re: Crowded needle roller little end   Sun Oct 13, 2013 6:11 pm

Hi Andy
need to know the size of the small end eye one on the conrod (what rod
and what the size the piston pin is try and find a small end cage if possible
Robbie
Back to top Go down
View user profile
1bantamcloser2divorce

avatar

Number of posts : 36
Localisation : Vancouver Island, CANADA
Registration date : 2009-10-06

PostSubject: Re: Crowded needle roller little end   Mon Oct 14, 2013 10:14 am

Robbie,

Thanks for the reply. I got this information from the Bantam Racing web page "Building †a175 Racer".

Talking about little end prep it says;
"What we do is fit a crowded roller, about 19 @ 3mm x 18.9mm rollers with sprung steel thrust washers to hold them in, these are a close fit on the pin and are home made."

I am thinking that matching the D1 little end to the Suzuki pin will need something like this, as I haven't seen or heard of anyone who has found a small end cage to do this.

But then, what do I know!

Cheers,

Andy
Back to top Go down
View user profile
dansofield550

avatar

Number of posts : 353
Localisation : gravesend kent
Registration date : 2011-10-23

PostSubject: Re: Crowded needle roller little end   Tue Oct 15, 2013 7:01 am

here's mine, two bearing parts from a needle roller plus all the pins
Back to top Go down
View user profile
1bantamcloser2divorce

avatar

Number of posts : 36
Localisation : Vancouver Island, CANADA
Registration date : 2009-10-06

PostSubject: Re: Crowded needle roller little end   Tue Oct 15, 2013 7:57 am

So do the piston pin cir clips hold it all together?

Thanks,
Andy
Back to top Go down
View user profile
dansofield550

avatar

Number of posts : 353
Localisation : gravesend kent
Registration date : 2011-10-23

PostSubject: Re: Crowded needle roller little end   Tue Oct 15, 2013 9:21 am

The pin has its clip in the piston as normal, the two washers are just a few thou bigger than the pin there function is the let the crowded rollers rub loosely on them rather than the inner part of the soft alloy piston. You'll have to select a piston that's big enough to fit all this in, tz or wisco ts185 etc
Back to top Go down
View user profile
1bantamcloser2divorce

avatar

Number of posts : 36
Localisation : Vancouver Island, CANADA
Registration date : 2009-10-06

PostSubject: Re: Crowded needle roller little end   Tue Oct 15, 2013 9:31 am

Thanks!

Andy
Back to top Go down
View user profile
ted

avatar

Number of posts : 184
Registration date : 2007-08-23

PostSubject: Crowded needle roller little end   Wed Oct 16, 2013 7:13 am

The tighter the fit between the washers and pin the better. Even .05mm will make them rattle and wear through the pin. I use hardened and tempered spring sheet and ream slide fit holes then put them on a mandrel and turn OD. You also do not want them crowded tight, if you can, get them tight then remove one. Most sizes you canít get them tight so just a space of almost one roller is fine.
Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

PostSubject: Re: Crowded needle roller little end   Wed Nov 20, 2013 7:58 am

Hi all there will be soon a small to replace the crowded rollers which will be great news for all the lads running the 175cc motors as soon as I get hold of one I will be testing it Very Happy
Back to top Go down
View user profile
patscabinet



Number of posts : 10
Registration date : 2010-11-11

PostSubject: 14 19 17   Tue Jan 14, 2014 7:51 am

These ? †santa
http://www.ebay.co.uk/itm/K14x19x17-Needle-Roller-Cage-Assembly-14x19x17mm-/141133719286?pt=UK_BOI_Industrial_Supply_Material_Handling_ET&hash=item20dc39a6f6#ht_2287wt_1073
Back to top Go down
View user profile
johnSbantam

avatar

Number of posts : 253
Localisation : New Zealand
Registration date : 2006-12-01

PostSubject: KTM rod little end bearing   Fri Jan 31, 2014 7:20 am

I think this is the one for the KTM rod:

http://www.ebay.co.uk/itm/K16x22x16-Needle-Roller-Cage-Assembly-16x22x16mm-/131064325506?pt=UK_BOI_Industrial_Supply_Material_Handling_ET&hash=item1e840ae582

Back to top Go down
View user profile
johnSbantam

avatar

Number of posts : 253
Localisation : New Zealand
Registration date : 2006-12-01

PostSubject: Re: Crowded needle roller little end   Fri Jan 31, 2014 7:24 am

For my short stroke motor with TZ250 Yamaha rod and Suzuki RM125 piston I also use an orphan 14 x 20 x 16
Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

PostSubject: Re: Crowded needle roller little end   Tue Feb 04, 2014 7:18 am

" />
Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

PostSubject: Re: Crowded needle roller little end   Tue Feb 04, 2014 7:19 am

" />
Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

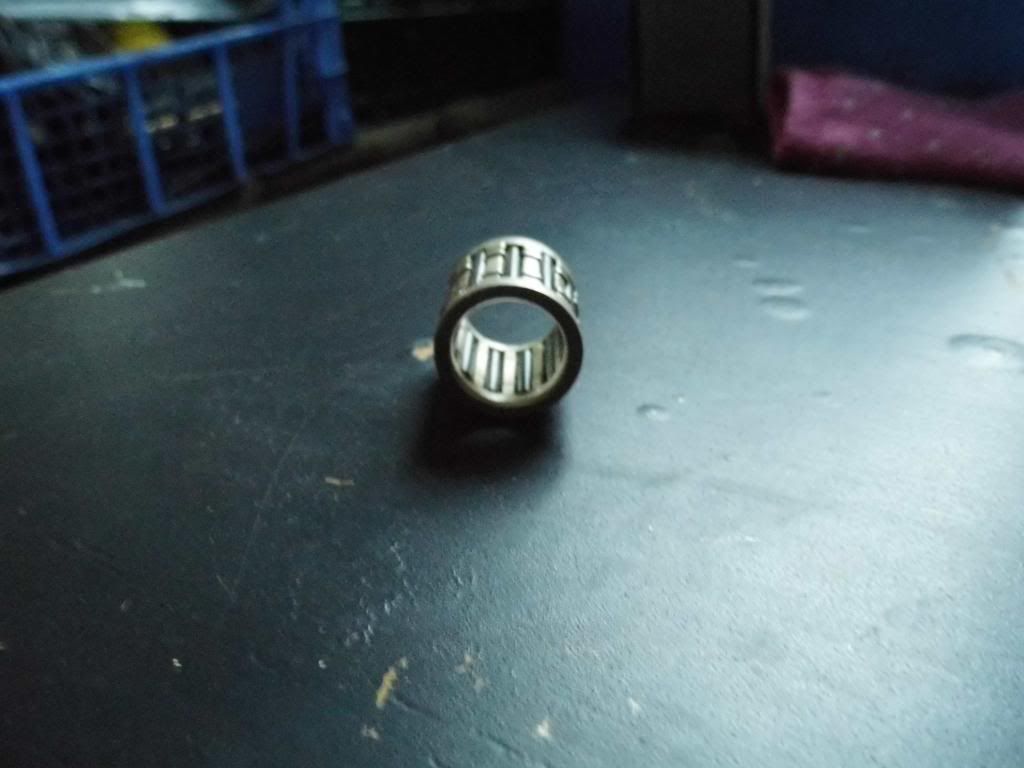

PostSubject: Re: Crowded needle roller little end   Tue Feb 04, 2014 7:20 am

[img][/img]
Back to top Go down
View user profile
johnSbantam

avatar

Number of posts : 253
Localisation : New Zealand
Registration date : 2006-12-01

PostSubject: Re: Crowded needle roller little end   Tue Feb 04, 2014 10:49 am

Robbie, what brand are those ?
Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

PostSubject: Re: Crowded needle roller little end   Wed Feb 05, 2014 5:28 am

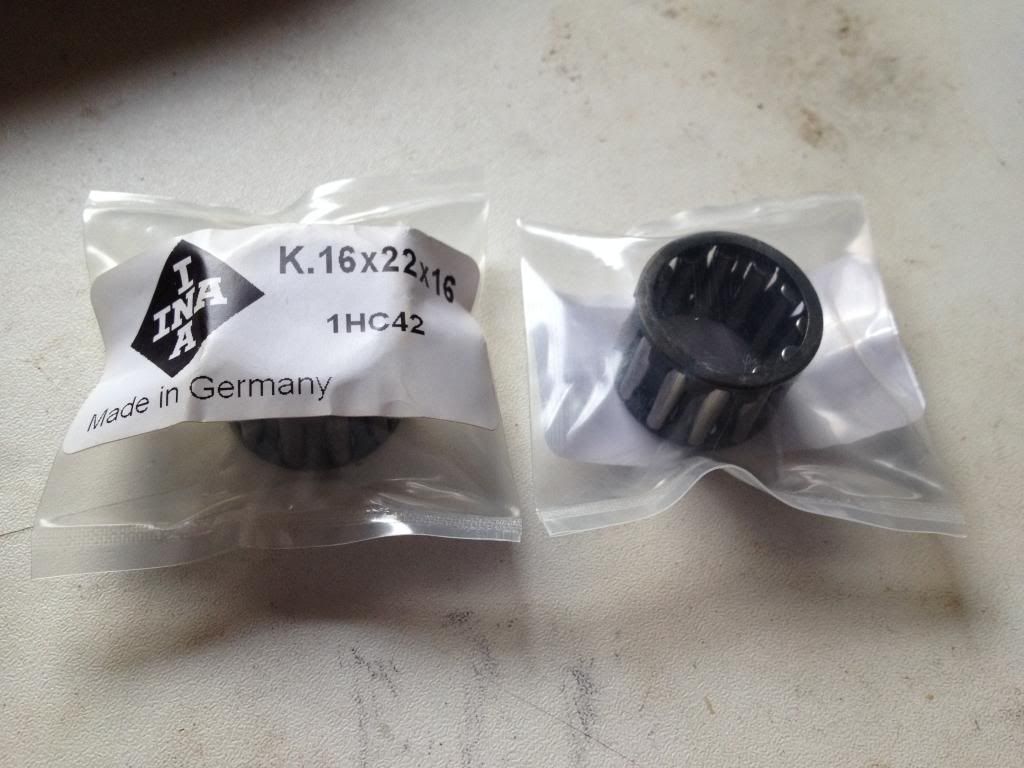

Hi John these's have been made to order for Rex Caunt

Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

PostSubject: Re: Crowded needle roller little end   Sun Apr 20, 2014 7:21 am

Hi all was running theses cages at the last meeting and look good will be running theses all season in both the bikes
Back to top Go down
View user profile
ROBBIE

avatar

Number of posts : 377
Localisation : Swanscombe Kent UK
Registration date : 2006-12-25

PostSubject: Re: Crowded needle roller little end   Mon Sep 15, 2014 5:48 am

Still running these caged rollers have done over 700 racing miles and still going I will be using them from now on. on all my 175 Engines
Back to top Go down
View user profile
dansofield550

avatar

Number of posts : 353
Localisation : gravesend kent
Registration date : 2011-10-23

PostSubject: Re: Crowded needle roller little end   Fri Sep 19, 2014 12:10 am

me too, fitted one to my engine last night, i didn't miss the agro of the crowded rollers! , swear box will be a little light at Christmas though Laughing
Back to top Go down
View user profile
